Haus Assembly Guide

Step 1. Find the left hand slot on the front and back wooden panels. Wedge the left soft fabric panel into the wooden panels slots.

1

(B)

(C)

(A)

Wedge (A) into the wooden slots on (B) and (C).

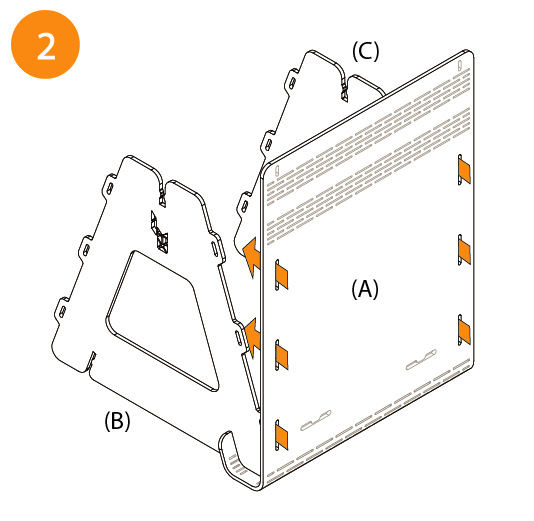

Step 2. Find the side tabs on the wooden panel, and push through the soft fabrics slots to lock it together.

2

(A)

Push the wooden tabs through (A) slots to lock the pieces together.

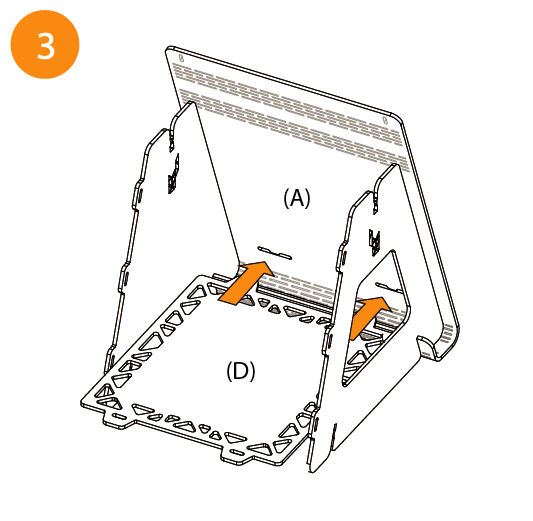

Step 3. Find the tabs on the base board. Push the tabs through the slots on the soft fabric side panel.

3

(A)

(D)

Use the soft or wooden base (D) depending on your pets size or preference. Push the tabs on (D) through (A) slots to lock the pieces together.

Step 4. Once locked together, you will see the tabs of the base board poking through the soft fabric panel.

4

(A)

(D)

(D)

Once locked together, you will see the tabs of (D) poking through (A).

Step 5. Find the right hand slot on the front and back wooden panels. Wedge the right soft fabric panel into the wooden panels slots.

5

(C)

(E)

(B)

Wedge (E) into the wooden slots of (B) and (C).

Step 6. Repeat step 2, but on the right hand side. Find the side tabs on the wooden panel, and push through the soft fabrics slots to lock it together.

6

Repeat the instructions given in step 2 on the remaining side.

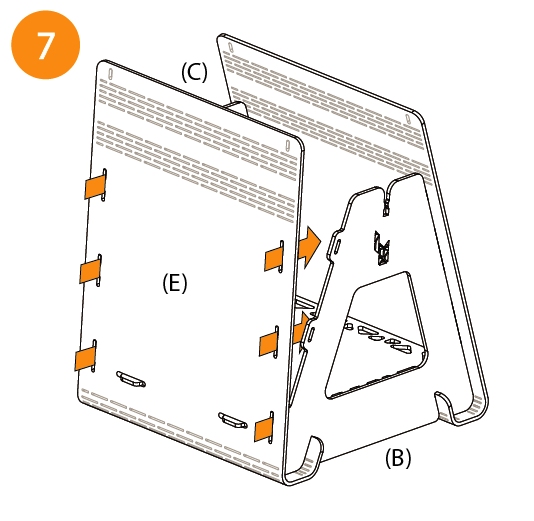

Step 7. Repeat the instructions given in step 3 on the remaining side.

7

(D)

(E)

(D)

Repeat the instructions given in step 3 on the remaining side. You will see (D)’s tabs poking through (E) once secured.

Step 8. There are slots at the very top of each wooden panel. Insert the soft fabric panels into these wooden slots.

8

Wedge the remaining panel ends into the wooden slots at the top.
